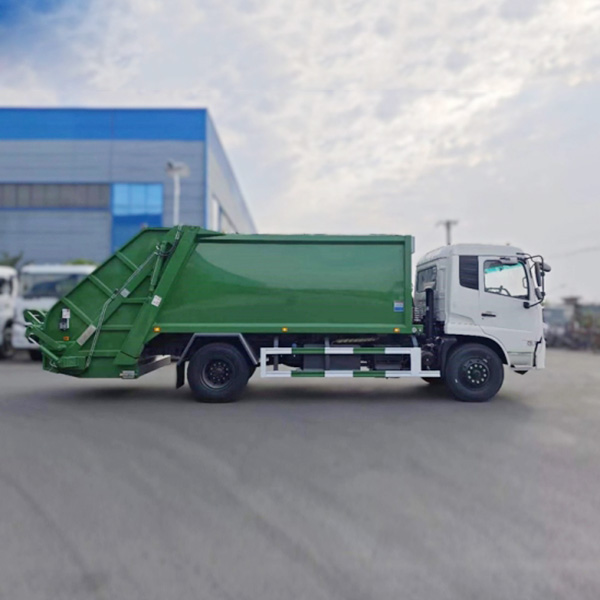

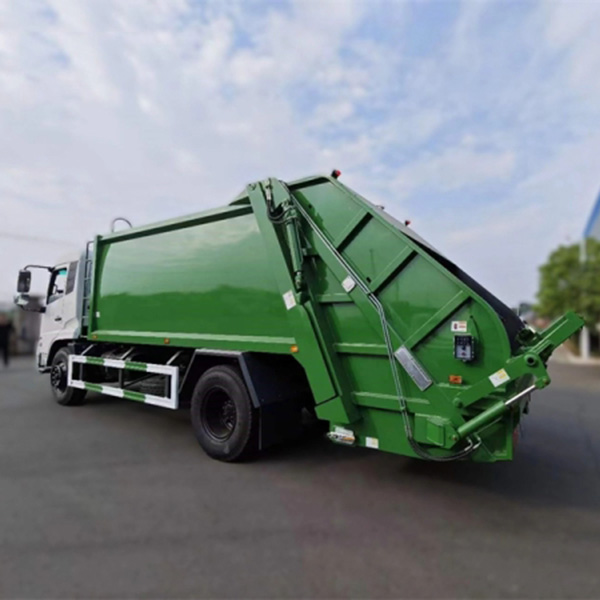

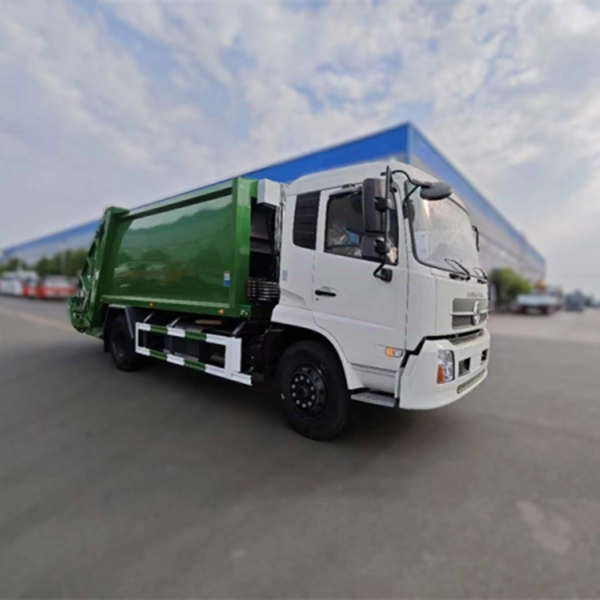

Dongfeng KR 4x2 Caminhão Compactor de Garbage

Dongfeng KR 4x2 Caminhão Compactor de Garbage

obtenha o ultimo preço

Quantidade de pedido mínimo:

Contato Agora

Descrição do produto

Atributos do produto

Embalagem & Entrega

Descrição do produto

Atributos do produto

Modelo: DongFeng

Embalagem & Entrega

The file is encrypted. Please fill in the following information to continue accessing it

Descrição do produto

Main Technology Parameter
Model Name	CLW brand 8~18cbm garbage compactor truck
Driving Type	4*2,
Cabin	Flat proof, one and half row, KR ,Hydraulic main seat, four-point hydraulic suspension cab, electric window lifter, manual flip, electric air conditioner, telescopic shaft control, ordinary vertical air filter, metal bumper, two-stage boarding pedal, 165Ah maintenance-free battery, spare Tire frame, DONGFENG logo, full English logo, remote throttle controller (electronically controlled engine) shipped with the vehicle
Color	White color or based on client’s request.
Weights
Rated payload weight(kg)	18000
Curb weight(kg)	6440
Dimensions
Wheelbase(mm)	5000
Overall Dimension(mm)	855024803130
Max speed(km/h)	89
Engine
Engine model	B210 33
Emission standard	waste bins flipover mechanismEuro 3
Engine type	6 cylinders, Water-cooled, four-stroke, brake with exhaust valve, direct injection, supercharged and intercooled, electronically controlled high pressure common rail + SCR
No. of cylinders	straight-6 cylinders, diesel
Displacement(L)	5.9L
Max. output (kw)	155KW (210HP)
Drive Line
Transmission	8JS118 ; 8 forwards,1 reverse gear, manual operation
Steering	Power steering
Brake	Oil brake with vacuum pump
Axle
Front axle	6.5 tons MAN technology
Rear axle	11.5Tons Man technology
Tire specification
Tire specification	10.00R20 standard tire,6 tires+1 spare tire

Garbage compactor box
Volume	8~18 cbm
Raw material	Q235 carbon steel, side is 5mm, and bottom is 5mm.(Q345 For optional)
Loading Method	Rear loader, waste bins flipover mechanism, can match 2 units 120 L, or 1 unit 240L and 1 unit 770L and 1100 L waste bins
Unloading Method	The back garbage filler unit is lifting up first, then garbage is pushed out by pushing plate
The working pressure of the hydraulic system	150-180Mpa
Compacted Ratio	1:0.75
Crushing Force	13.5tons
Control Method	Double side control box + manual levers PLC and wireless remote control; one-key cycling + half-auto control
Sewage Tank	One unit
Others	The bottom box and filler unit are made of thick steel plate. The back filler unit lifting cylinder is equipped with a locking device. The upper part is equipped with a function of repeated compression and bidirectional peristaltic compression, an integrated flashlight operation mode, and a double-sided control box.
Camera	2 units; one is for reverse image, and one is for checking the working condition.
Paint	Electrophoretic coatings (The anti-rust ability is close to the cabin)

DongFeng Kr 4x2 Compactor Truck Designed for Urban Waste Solutions

O caminhão de lixo de compressão adota a tecnologia de integração eletromecânica-hidráulica, com o auxílio de sistemas de controle automático de articulações mecânicas, elétricas e hidráulicas, controle de computador e sistemas operacionais manuais, através do uso de dispositivos especiais, como enchimentos e push, para atingir lixo, esmagando ou queimando e compensando a carga, a push. Todos os esgotos entraram no tanque de esgoto, que resolveu o problema da poluição secundária no processo de transporte de lixo.
