Modelo: Shacman
The file is encrypted. Please fill in the following information to continue accessing it
|
Main Technology Parameter |
|
|
Model Name |

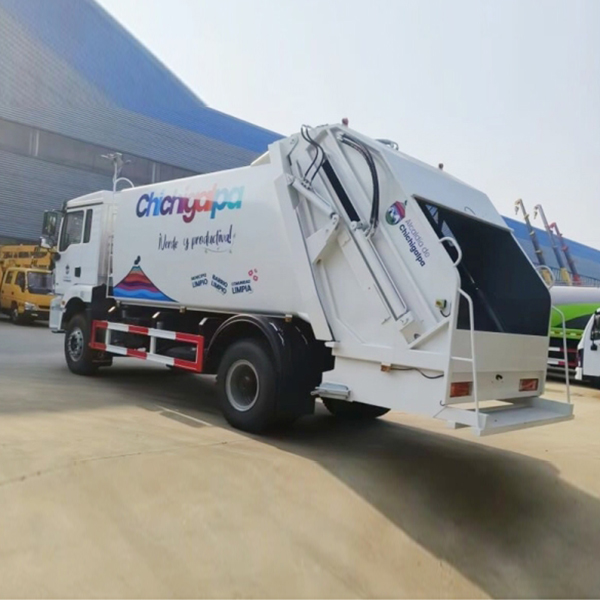

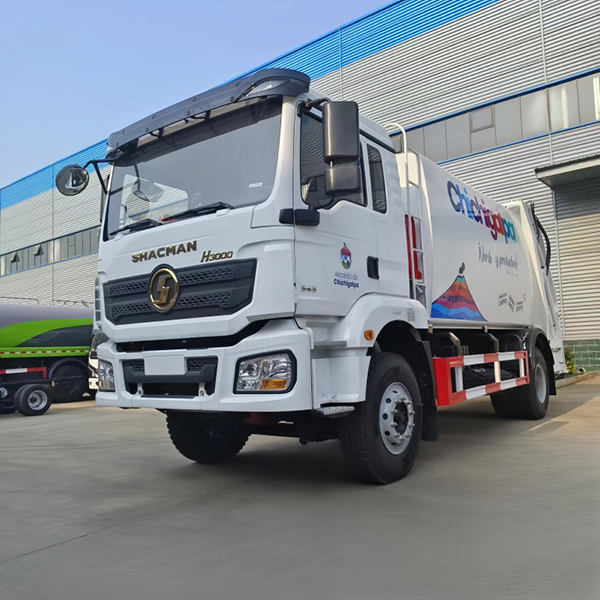

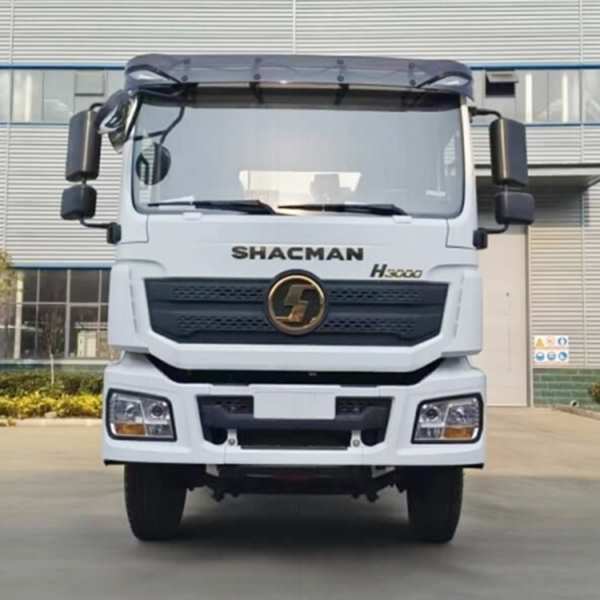

brand 13~18cbm garbage compactor truck |
|
Driving Type |
4*2, |
|
Cabin |
Flat proof, one and half row, H3000 ,Hydraulic main seat, four-point hydraulic suspension cab, electric window lifter, manual flip, electric air conditioner, telescopic shaft control, ordinary vertical air filter, metal bumper, two-stage boarding pedal, 165Ah maintenance-free battery, spare Tire frame, SHACMAN logo, full English logo, remote throttle controller (electronically controlled engine) shipped with the vehicle |
|
Color |
White color or based on client’s request. |
|
Weights |
|
|
Rated payload weight(kg) |
12000 |
|
Curb weight(kg) |
7000 |
|
Dimensions |
|
|
Wheelbase(mm) |
5000 |
|
Overall Dimension(mm) |
9500×2550×3300 |
|
Max speed(km/h) |
95 |
|
Engine |
|
|
Engine model |
WP6.210E32 |
|
Emission standard |
waste bins flipover mechanismEuro 2 |
|
Engine type |
6 cylinders, Water-cooled, four-stroke, brake with exhaust valve, direct injection, supercharged and intercooled, electronically controlled high pressure common rail + SCR |
|
No. of cylinders |
straight-6 cylinders, diesel |
|
Displacement(L) |
6.23L |
|
Max. output (kw) |
155KW (210HP) |
|
Drive Line |
|
|
Transmission |
FAST brand 8JS85TM ; 8 forwards,1 reverse gear, manual operation |
|
Steering |
Power steering |
|
Brake |
Oil brake with vacuum pump |
|
Axle |
|
|
Front axle |
4.8 tons MAN technology |
|
Rear axle |
10Tons Man technology |
|
Tire specification |
|
|
Tire specification |
10.00R20 standard tire,6 tires+1 spare tire |
|
Garbage compactor box |
|
|
Volume |
13~18 cbm |
|
Raw material |
Q345 carbon steel, side is 5mm, and bottom is 5mm. |
|
Loading Method |
Rear loader, waste bins flipover mechanism, can match 2 units 120 L, or 1 unit 240L and 1 unit 770L and 1100 L waste bins |
|
Unloading Method |
The back garbage filler unit is lifting up first, then garbage is pushed out by pushing plate |
|
The working pressure of the hydraulic system |
150-180Mpa |
|
Compacted Ratio |
1:0.75 |
|
Crushing Force |
13.5tons |
|
Control Method |
Double side control box + manual levers PLC and wireless remote control; one-key cycling + half-auto control |
|
Sewage Tank |
One unit |
|
Others |
The bottom box and filler unit are made of thick steel plate. The back filler unit lifting cylinder is equipped with a locking device. The upper part is equipped with a function of repeated compression and bidirectional peristaltic compression, an integrated flashlight operation mode, and a double-sided control box. |
|
Camera |
2 units; one is for reverse image, and one is for checking the working condition. |
|
Paint |
Electrophoretic coatings (The anti-rust ability is close to the cabin) |
Aqui está uma apresentação reorganizada e estruturada do caminhão de lixo com compactores 14m (RHD/LHD 4x2 Shacman):
Model: rhd/lhd 4x2 chassi Shacman
Function: coleta municipal de resíduos sólidos, compressão e transporte
Sistema de controle de operação Dada
Design de prevenção da poluição
Mecanismos de carregamento avançados
Safety & Confiabilidade
(Comumente conhecido como):
Caminhão de lixo compacto, caminhão de resíduos compactadores, veículo de coleta de lixo, vagão de lixeira, carcaça, caminhão compacto de lixo, caminhão de lixo.
Essa estrutura prioriza a clareza técnica, os benefícios operacionais e as opções de personalização para potenciais compradores. Deixe -me saber se for necessário um refinamento adicional!
